Forum Index : Microcontroller and PC projects : Micromite HAT stands: MM2, MM+, MMX

Author Message
matherp
Guru

Joined: 11/12/2012
Location: United Kingdom
Posts: 10066
Posted: 09:42am 27 Nov 2017
Copy link to clipboard
Print this post

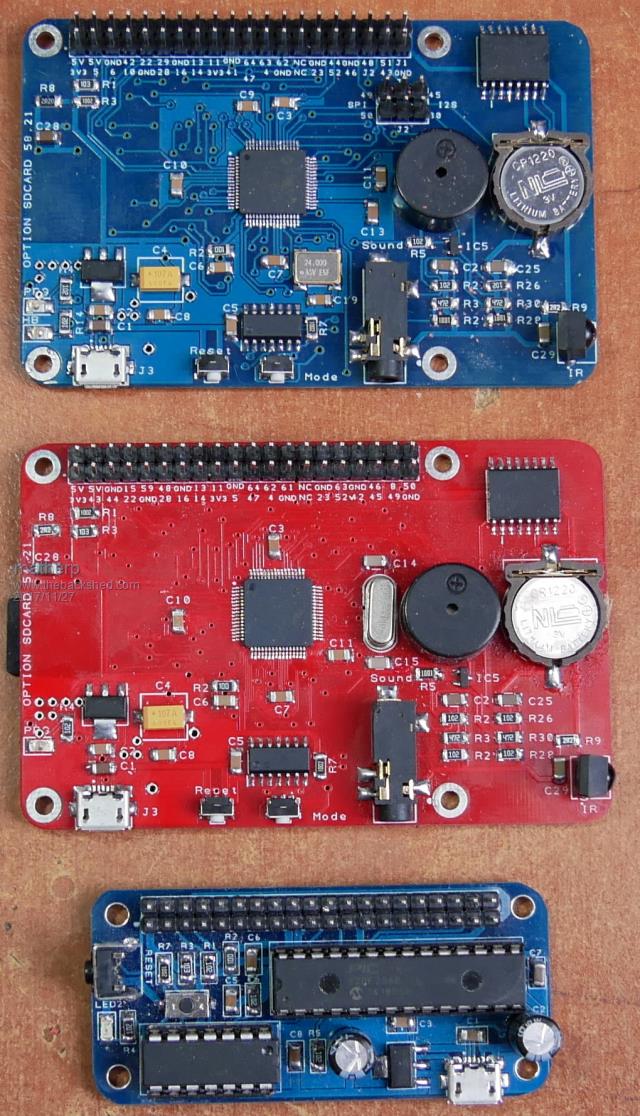

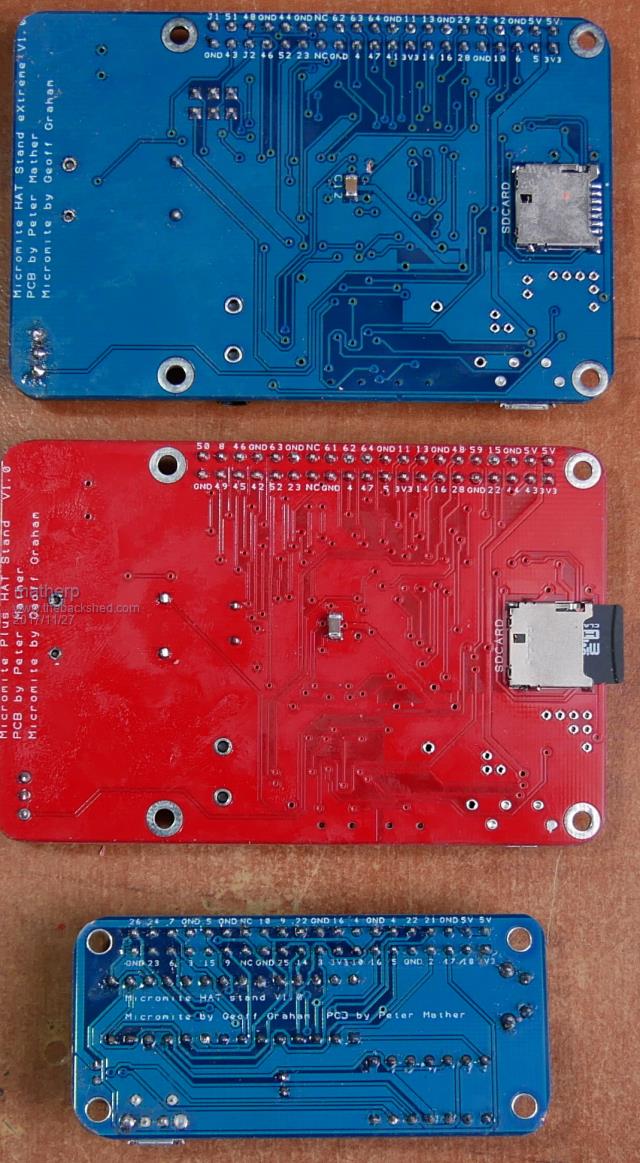

All PCBs are double sided and track sizes/spacing etc. meet the specs for the lowest production cost (USD5 for 10 PCB at PCBGogo)

Gerbers:

2017-11-27_193423_HAT28.zip

2017-11-27_193512_HAT64MZ.zip

2017-11-27_193529_HAT64MX.zip

Schematics:

2017-11-27_193853_MM2schematic.pdf

2017-11-27_193914_HATMZ64schematic.pdf

2017-11-27_193929_MX64HATSchematic.pdf

Ask WW nicely if you want PCBs ready made, part made, etc. Please note I have no financial interest in any of the boards I design so they are made available as-is.
Edited by matherp 2017-11-28

Azure

Guru

Joined: 09/11/2017
Location: Australia
Posts: 446
Posted: 12:19pm 27 Nov 2017
Copy link to clipboard
Print this post

Very nice work, they look very tempting. I will have to think of a reason to make some :)Edited by Azure 2017-11-28

Quazee137

Guru

Joined: 07/08/2016
Location: United States
Posts: 586
Posted: 11:22pm 28 Nov 2017
Copy link to clipboard
Print this post


A ton of THANKS mattherp

Now I need to plan on getting a few of each from WW as I haven't made
the now really needed reflow oven.

I got the 28 pin Hat stand and I using these 28 pin con so one of my I/O hats will really be pants as the Hat Stand will
plug into it and a 4" display on the Hat Stand.


Quazee137
